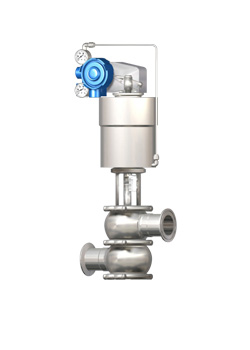

※電空ポジショナー付

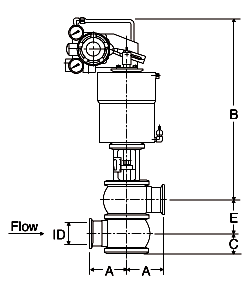

| Nom.size |
ID |
A |
B |
C |
E |
Cv値 |
Mass kg |
ヘルール
ネジ |
| 1.0S |
23 |
55 |
408 |
33 |
48 |
10 |
8.1 |
| 1.5S |
35.7 |
70 |
414.5 |
39 |
61 |
25 |
9.4 |
| 2.0S |
47.8 |
82 |
499 |
47 |
76 |
40 |
16.0 |
| 2.5S |
59.5 |
105 |
505 |
53 |
88 |
65 |
16.2 |
| 3.0S |
72.3 |
110 |
556 |
59 |
100 |
75 |
24.1 |
| 3.5S |
85.1 |
125 |
563 |
66 |
113 |
90 |
27.9 |
| 4.0S |
97.6 |
155 |
600 |
83 |
138 |
100 |
43.7 |
|
