Pressure Gauge Diaphragm　【Type PGD-V】

Here for heat radiation fin type.

Ferrule

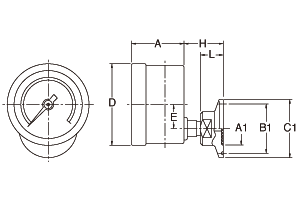

Nom.size	A1	B1	C1	L	H(φ75)	H(φ100)
1.5^S	35	43.5	50.5	22	46	44
2.0^S	47	56.5	64	22	46	44
2.5^S	58	70.5	77.5	26.4	50.4	48.4
3.0^S	70	83.5	91	26.4	50.4	48.4
4.0^S	100	110	119	27.9	51.9	49.9

Meter
size	A	D	E
φ75	40	83	25
φ100	46	107	32
