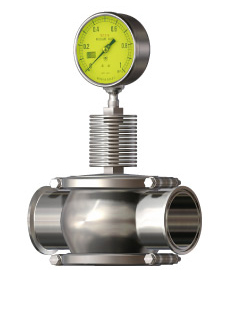

In-line Sanitary Pressure Gauges (with fin)　【Type PGH-F】


  この製品の参考資料

Here for no heat radiation fin type.


※Number of fins (Fin：7/Long Fin：14/φ60long Fin：14/)

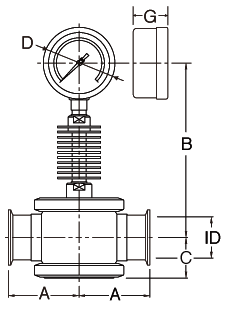

Nom.size ID A B C
Ferrule
Screw		 φ75 φ100
1.0S 23 55 182 197 33
1.5S 35.7 70 188.5 203.5 39.5
2.0S 47.8 82 202 217 47
2.5S 59.5 105 208 223 53
3.0S 72.3 110 214 229 59
3.5S 85.1 125 220.5 235.5 66
4.0S 97.6 155 239 254 83

Meter
Size D G
φ75 83 40
φ100 107 46
