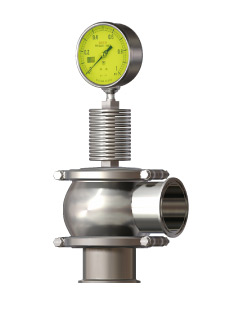

In-line Sanitary Pressure Gauges (with fin)　【Type PGL-F】


  この製品の参考資料

Here for no heat radiation fin type.


※Number of fins (Fin：7/Long Fin：14/φ60long Fin：14/)

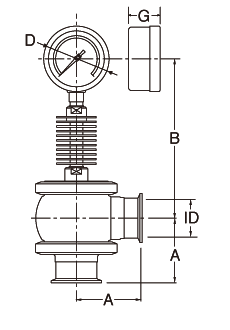

Nom.size ID A B
Ferrule
Screw		 φ75 φ100
1.0S 23 55 182 197
1.5S 35.7 70 188.5 203.5
2.0S 47.8 82 202 217
2.5S 59.5 105 208 233
3.0S 72.3 110 214 229
3.5S 85.1 125 220.5 235.5
4.0S 97.6 155 239 254

Meter
Size D G
φ75 83 40
φ100 107 46
