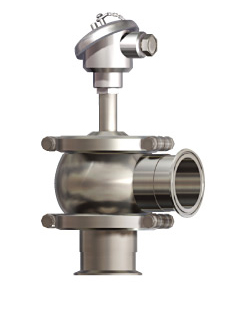

In-line Sheath Resistance Thermometer Bulbs　【Type TIL】


  この製品の参考資料


※For 15A or less male ends are not prepared.

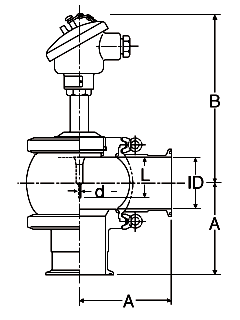

Nom.size ID A B Protecting tube d L Mass kg
Ferrule
Screw
1.0S 23 55 162 φ3.2 20
1.5S 35.7 70 168 φ3.2 32
2.0S 47.8 82 189 φ3.2 45
2.5S 59.5 105 195 φ3.2 45
3.0S 72.3 110 202 φ4.8 70
3.5S 85.1 125 208 φ4.8 70
4.0S 97.6 155 224 φ6.4 90
8A 10.5 55 159 φ3.2 20
10A 14 55 159 φ3.2 20
15A 17.5 55 156 φ3.2 20
